Today weâll look at the Silhouette effect, which draws objects close to the camera in a darker shade than those far back in the distance. So far, weâve been interacting with the framebuffer (the 2D array of values that pixel colour values are rendered into) and now weâll introduce a new buffer - the depth buffer.
Silhouette

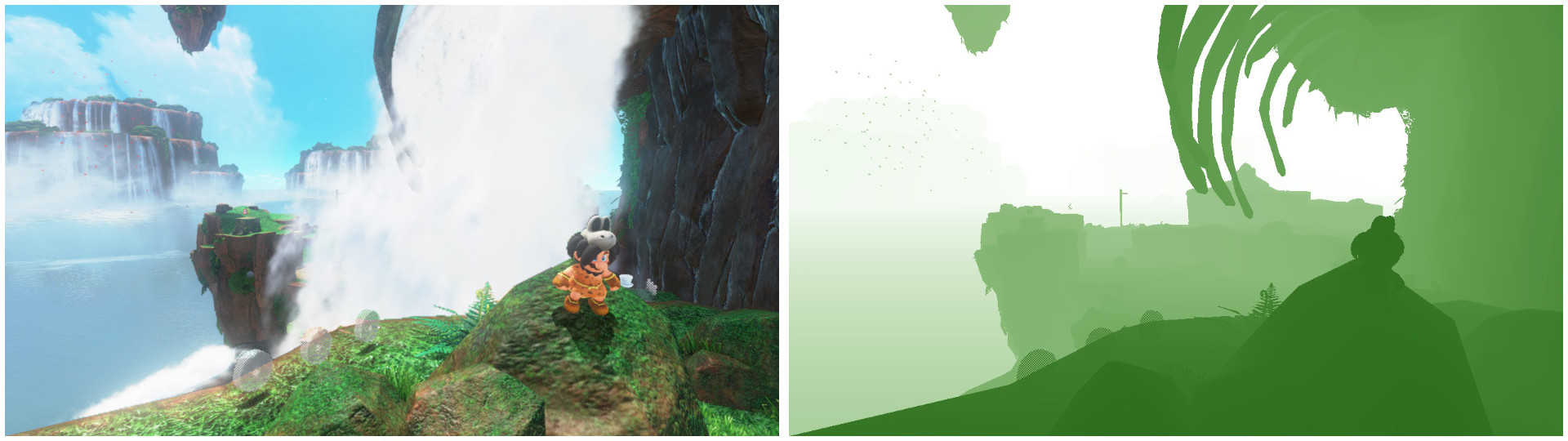

The Silhouette filter is a striking effect which emphasizes objects in the foreground, bringing the eyeâs focus towards those elements. With this shader, weâre going to develop some metric to determine how far away from the screen each pixel is.

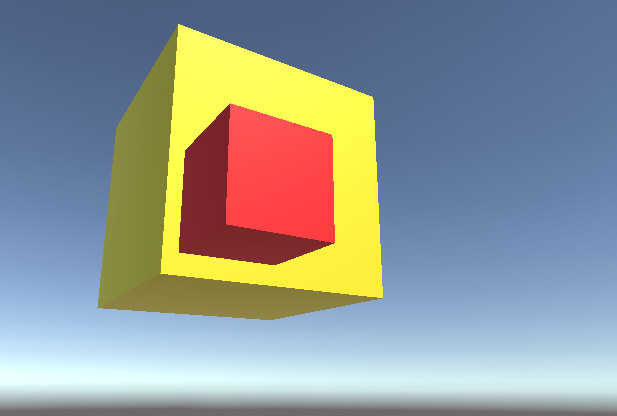

Imagine a complex scene with many objects obscuring other objects from view, in whole or in part. How exactly does the GPU decide to render the objects in front, but ignore those behind? A naive implementation of a rendering algorithm might just read every object in the scene in some indeterminate order and draw them all in turn, and itâd be a mess - objects would likely be erroneously drawn in front of object that they ought to be behind. Our graphics pipeline should keep track of what has already been drawn to the screen - lucky for us, generations of smart graphics people thought up some neat ways of doing this! The image below shows a red cube thatâs positioned behind the yellow one in 3D space but drawn in front of it; both cubes are the same size.
When the GPU wants to draw a pixel to the screen, we can calculate how far away from the camera the pixel is. We remember that value by recording it in a 2D array called the âdepth bufferâ or âz-bufferâ - the distance recorded is called the âdepth valueâ, and each member of this array corresponds to a pixel position on the screen. The corresponding buffer used to hold all the screen pixel colours is called the âframebufferâ. When we attempt to draw a pixel to the framebuffer, weâll do some âdepth testingâ - if there is already a depth value in the depth buffer lower than the one for the pixel weâre trying to draw at that position, then weâll discard it instead. Else, we shall draw it to the framebuffer at that pixel position and record its depth value in the depth buffer.
This is useful for us, as the silhouette effect is, essentially, colouring pixels based on their depth. If we can access the depth buffer in the fragment shader for our image effect, then weâll be able to apply colours based on how far away objects were when they were initially rendered to the framebuffer. This is all effectively âfor freeâ, because the depth buffer is going to be filled regardless of whether we want to use it for an image effect.

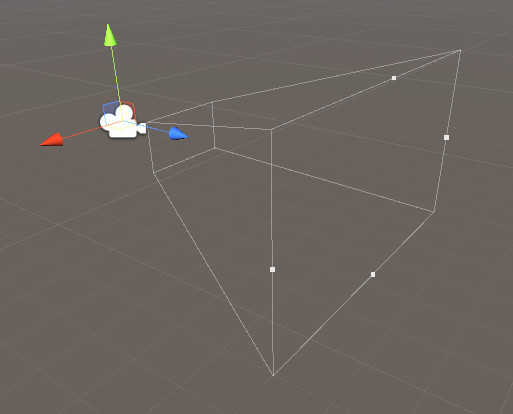

Letâs go over the implementation details of the depth buffer. Usually, depth values are floating-point decimals between 0 and 1, where 0 is very close to the camera, and 1 is far away. How close and how far, I hear you ask? Well, our camera is in perspective mode, so objects further away look smaller than objects close to you. We only want the camera to draw certain objects, so we define a volume shaped like a square-based pyramid with the top cut off - a rectangular frustum - to decide what is or isnât in the cameraâs view. The angle of the frustum is controlled by a âfield of viewâ parameter, and the base and top of the pyramid are called the âfarâ clip plane and ânearâ clip plane respectively. Pixels resting exactly on the near plane have a depth of 0, and those on the far plane have a depth of 1. Anything outside that frustum shape wonât be drawn at all.
To throw one more complexity into the equation, depth values arenât calculated linearly between the near and far clip planes, as explained here. That might seem counter-intuitive at first, but we can exploit the properties of floating-point numbers to store close objects with more precision than faraway objects. Donât worry about it too much - weâll be using pre-defined functions to handle the necessary conversions to sensible values for us.

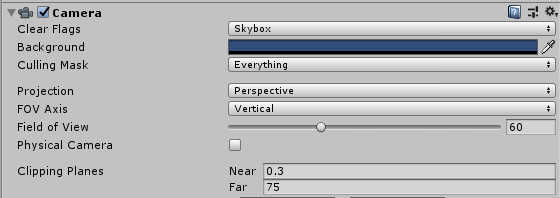

Before we start, make sure to set your cameraâs far clip plane distance to a reasonable value - I used a value of 75, which should keep the example scene all in frame, but this will likely require a bit of tweaking based on the size of your scene. If itâs too large, youâll barely see the colour difference between close objects when the shader is complete, and if itâs not large enough, some objects in your scene will end up outside the camera frustum and are culled.
We can retrieve the depth buffer as a texture to use in shaders in Unity. Open the shader template found in Shaders/Silhouette.shader and look at the fragment shader - Iâve defined a depth varaible that weâll be modifying. Running this shader now will result in a completely black screen - letâs fix this. Remember how the texture rendered by the camera is passed to the image effect shader in _MainTex? Similarly, we can retrieve the camera depth texture called _CameraDepthTexture, like this:
// Other variable definitions.
sampler2D _CameraDepthTexture;
We donât need to do anything special to enable this functionality - by default, it is available for our image effect shader to use. Each pixel of the depth texture contains the depth buffer values for that pixel; the texture is the same size as _MainTex. Unity defines many helpful functions inside UnityCG.cginc, as discussed in the Shader Primer - weâll use one of those to help us get depth values from the depth texture. Inside the fragment shader, letâs define a depth variable:
// Replace the existing depth variable definition.
float depth = UNITY_SAMPLE_DEPTH(tex2D(_CameraDepthTexture, i.uv));
UNITY_SAMPLE_DEPTH is a special function which we can use to get a depth value out of the depth texture. Weâll sample the depth texture the same way we would sample any other texture with tex2D, then use UNITY_SAMPLE_DEPTH() to convert it from a colour to a single depth value. If you apply this shader now, the colours will be the wrong way around - we want the background to be white. Letâs change the depth value with an extra line of code.
float depth = UNITY_SAMPLE_DEPTH(tex2D(_CameraDepthTexture, i.uv));
depth = Linear01Depth(depth);
Before applying the Linear01Depth function, the depth value represents the reciprocal of the true depth, as per the article I linked earlier. By using the function, we make the depth value linear between 0 and 1; now the background is fully white, and the foreground elements are easier to distinguish from one another. I tweaked this line with a power function (pow()) to make the effect a bit more pronounced, but this is likely going to be down to personal preference:
depth = pow(Linear01Depth(depth), 0.75);
With pow, the distances between objects close to the screen will be exaggerated even more. We now have a depth effect, but itâs entirely greyscale - letâs add a bit of colour.
// Properties.
_NearColour ("Near Clip Colour", Color) = (0.75, 0.35, 0, 1)
_FarColour ("Far Clip Colour", Color) = (1, 1, 1, 1)
// Shader variables.
fixed4 _NearColour;
fixed4 _FarColour;
My apologies for how Iâm spelling âcolourâ, by the way - Iâm a stubborn Brit so itâs in my nature to add in the âuâ. Weâll define two colours - one is the colour value for pixels at the near clip plane, and the other for pixels at the far clip plane. Now weâll need a bit of code in our shader to pick a colour between those two, based on the depth value. The lerp() function is perfect for this - it takes in two colours and some floating-point decimal between 0 and 1, and returns a colour blended between the first and second colour, based on that decimal.
return lerp(_NearColour, _FarColour, depth);

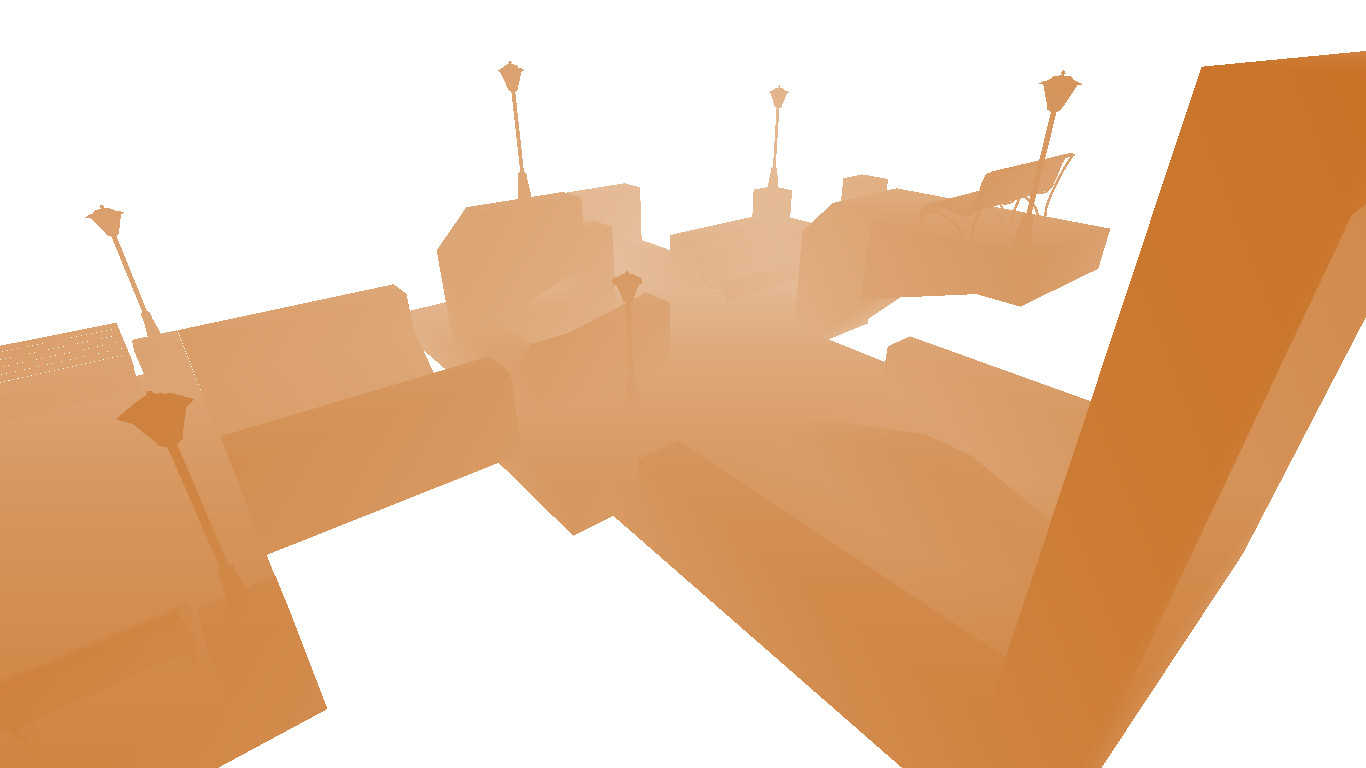

The word âlerpâ is short for âlinear interpolationâ, and here weâll see it in action. If you run the shader with those values, youâll get a lovely yellow-orange blend reminiscent of the Sand Kingdomâs silhouette effect. Play around with _NearColour and _FarColour to mimic other kingdoms!
A note about drawing transparent objects
When I introduced the depth buffer at the start of this post, I described the process of drawing objects as just picking random objects out of the scene and drawing them in that random order. In cases where only totally opaque objects are being drawn, this is sufficient; we are wholly replacing colour values in the framebuffer when we draw a pixel. It gets more complicated with transparent objects. Typically, one would draw all opaque objects to the screen and update the depth buffer accordingly, then draw transparent objects. Those are drawn in order, usually starting with the furthest-back objects and ending with those closest to the camera (or the reverse order), and you blend colours with the existing framebuffer values rather than overwrite them. Luckily, weâre not dealing with transparency at all - image effect shaders only draw to a fullscreen quad (i.e. two triangles covering the entire screen space).
Conclusion
Those are the basics of using the depth buffer and depth textures to achieve an effect based on how far away pixels are. If youâd like to play around with the effect a bit, you could probably find a way to implement a cheap fog effect by keeping the base pixel colours but making them lighter the further away they are.
Next tutorial, weâll be looking at the Blur effect and a few different approaches we could take to implement a blur.
