The CRT Post Process is a multi-featured screen filter which transforms the game from a modern HD LCD or LED panel to a classic CRT screen. It also supports extra VHS effects for an added layer of retro style.

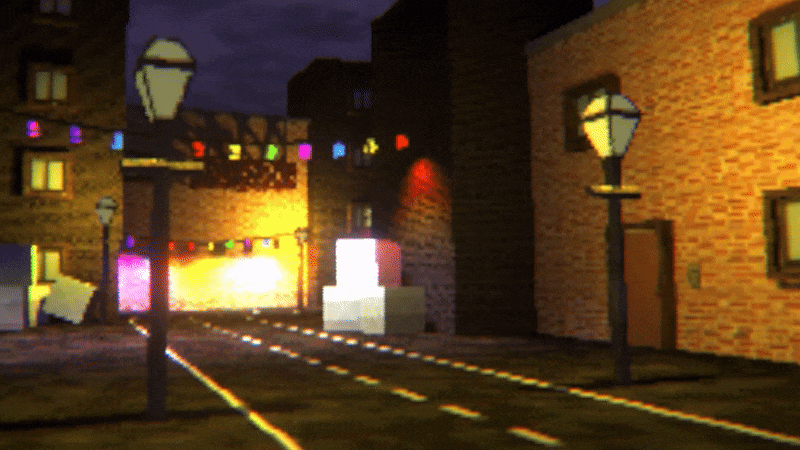

CRT Filter with VHS tracking artifacts

Retro Properties

Resolution & Fidelity

  • Pixel Size - An integer value representing how pixelated the image becomes.
  • Scale In Screen Space - Choose whether to scale the size of other parameters relative to a reference resolution. Enable this when you want pixelation/RGB properties to appear the “same size” on different resolution screens.
  • Reference Resolution (Vertical) - Set this to the vertical screen resolution you are designing the game around. When Scale Parameters is enabled, each parameter remains unchanged when the screen is at this resolution.

Barrel Distortion

  • Distortion Strength - Controls how strongly the edges of the screen warp inwards to form the shape of a CRT glass screen.
  • Distortion Smoothing - How much blending there is between the areas ‘inside’ and ‘outside’ the screen. Leave as 0 for a hard border.
  • Background Color - Color of the areas outside the distorted CRT screen shape.

RGB Subpixels & Scanlines

  • Subpixel Texture - Texture to use for the RGB subpixel effect. All pixels on the screen are multiplied by this texture such that the red, green, and blue screen colors appear separate to each other.
    • An example of a texture to use for this is contained in Retro Shaders Pro/Resources/Textures/RGBTexture.png.
  • Subpixel Strength - How strongly the RGB subpixel effect is applied.
  • Scanline Texture - Texture to use for the scanline effect. All pixels on the screen are multiplied by this texture such that scanlines appear scrolling over the image.
    • An example of a texture to use for this is contained in Retro Shaders Pro/Resources/Textures/ScanlineTexture.png.
  • Scanline Strength - How strongly the scanline effect is applied.
  • Scanline/RGB Size - Larger values make the scanlines (and RGB subpixels) appear larger on-screen.
  • Scanline Scroll Speed - How quickly the scanline texture scrolls over the screen.

VHS Artifacts

  • Random Wear - Adds small, noisy UV distortions horizontally to simulate the fuzzy look common with old VHS tapes.
  • Aberration Strength - How strongly chromatic aberration (color channel separation) is applied at the screen edges.
  • Use VHS Tracking - Should the shader apply the following VHS tracking artifacts?
  • Tracking Texture - A control texture for tracking artifacts.
    • This should be an x-by-1 image.
    • The red channel controls the strength of the tracking UV offsets.
    • The green channel controls the presence of tracking lines overlaid onto the screen.
    • An example of a texture to use for this is contained in Retro Shaders Pro/Resources/Textures/TrackingRamp.png.
  • Tracking Size - How ‘zoomed in’ the tracking ramp is when scrolling over the screen.
  • Tracking Strength - How strongly the tracking ramp red channel offsets the UVs of the screen horizontally.
  • Tracking Speed - How quickly the tracking ramp scrolls across the screen. Use negative values to scroll upwards.
  • Tracking Jitter - A random offset applied to the scrolling to make it appear jittery.
  • Tracking Color Damage - Cycle the chrominance of the image slightly to look like the tape is damaged. The screen is converted to YIQ color space, and the offset is applied to the I and Q channels.
  • Tracking Lines Threshold - A threshold for tracking lines to appear on screen. Higher values mean fewer lines.
  • Tracking Lines Color - The color of the tracking lines, where the alpha channel acts as a global multiplier on the tracking line strength.

Color Adjustments

  • Tint Color - A global tint applied to the entire CRT screen effect.
  • Brightness - Global multiplier for the image colors before some effects are applied. A value of 1 preserves the image as-is.
  • Contrast - Forces differences in colors to become more obvious. A value of 1 preserves the image as-is.
