A lot of people seem to struggle with shaders. After following a few tutorials, I still see people unsure where to go from there, and I’ve certainly been in that position myself! It takes time to develop the skills to analyse effects made by others and take apart how those effects work, and probably even longer to come up with original effects yourself. In this tutorial, I’ll aim to uncover some tips you can use when making effects! We’ll look at an effect I’ve made before, and analyse its visual appearence to try and reverse-engineer how it was made. Using this knowledge, hopefully you’ll be able to adopt this mindset when looking at games you’ve played so you’ll be able to recreate some of the set pieces from them.
Unity Basics aims to teach you a little part of Unity in an easy-to-understand and clear format.
This tutorial is aimed at people who have used a bit of Shader Graph before, and you’re looking for tips to take what you’ve learned and build your own effects.
By the way, I have a Discord server for people who are making things using shaders! If you want to share something you’ve worked on, see what others are doing, ask questions about shaders or otherwise just wanna hang out with others who like shaders, come join us!
Also check out this tutorial on my YouTube channel maybe? Remember to subscribe too!
Reverse Engineering the Dissolve Effect
Basic colours

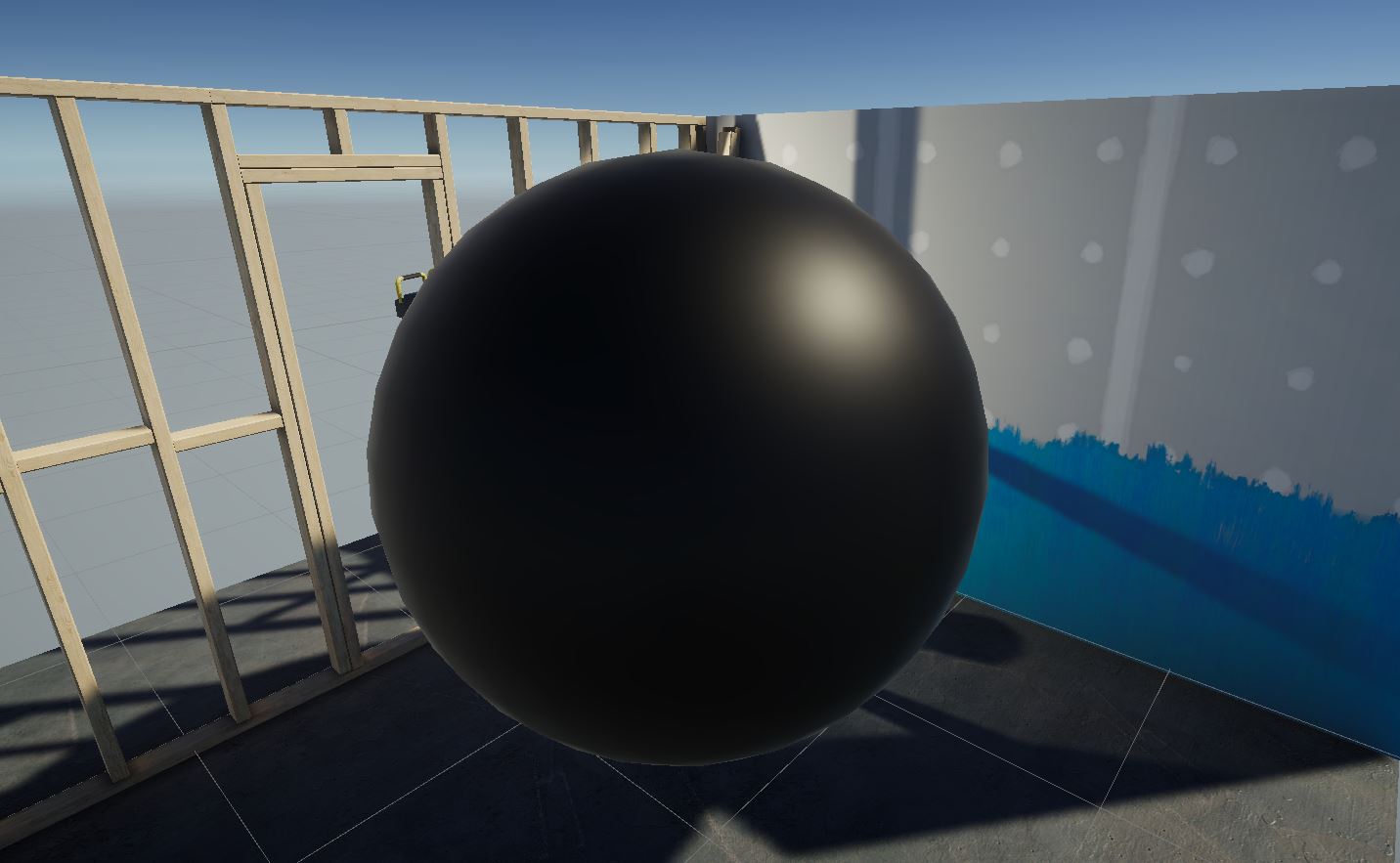

Let’s look at the dissolve effect when the actual dissolve is not yet active. The object seems to use Unity’s built-in lighting systems and a diffuse colour - we’ll probably want to use a Lit or PBR Shader Graph with a base colour or base texture. We can tell, because there’s lighting variation on the sphere. We can see highlights and shadowing. That’s about all there is to say about the effect when there’s no dissolve yet! We’ll create a new lit shader in URP using Create -> Shader -> Universal Render Pipeline -> Lit Shader Graph, or in older versions of Unity, it might be Create -> Shader -> PBR Graph. Then we can quickly add a Base Color property and connect it directly to the Base Color output.
Who can solve the mystery of the missing dissolve?
Dissolving the mesh

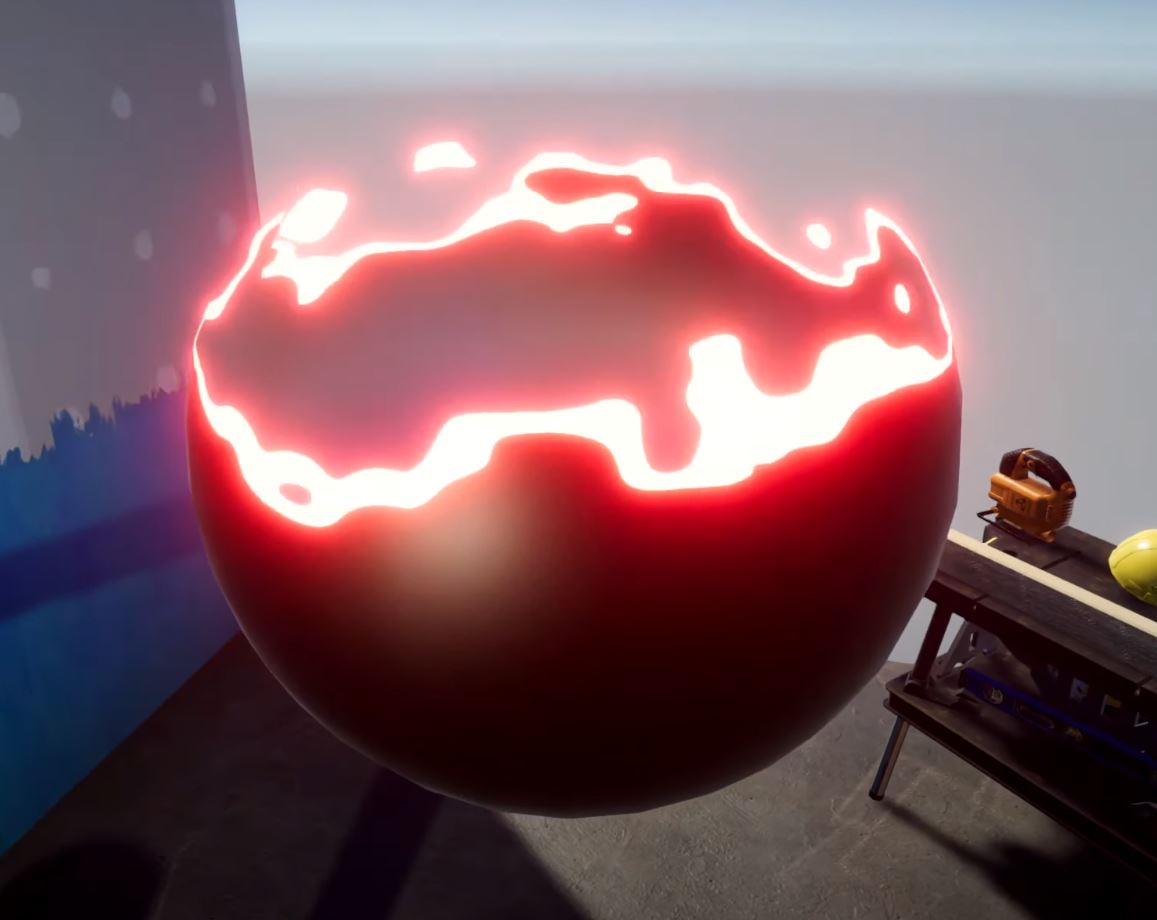

Things get a lot more interesting when we start playing the effect. The shader can clearly delete parts of the mesh, but each part that remains is fully opaque. From this, we can conclude that our shader can use opaque rendering - as opposed to transparent rendering, which is more expensive - and we can cull (i.e. remove) those pixels above the dissolve cutoff threshold. We’ll come back to this in a second.
Gets a glowing recommendation from me.

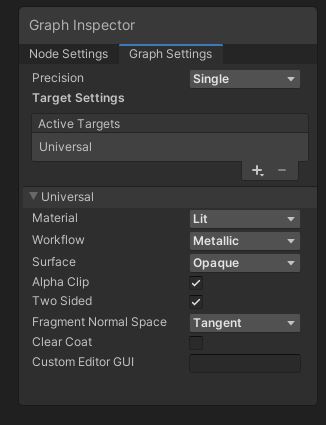

When we cut off those bits of the mesh, we can see the inside parts of the shell of the mesh. This suggests the shader uses two-sided rendering, which is an option in the Graph Settings. Make sure that’s ticked, and Unity will render both the front and back sides of each triangle in the mesh. Usually, Unity only renders the front side as an optimisation.
At least this tutorial isn’t one-sided.
Clearly, the shader isn’t just setting a single height value for the cutoff, because the lip of the sphere is incredibly uneven. We can probably use a noise offset plus a global height value for the cutoff, which is great because Unity provides a few noise nodes out of the box. There’s a few areas of the mesh that are floating, which supports the idea it’s a 2D noise value that’s being used. We can use the Simple Noise node for that.
At this stage, it’s a good idea to think not only about the things we can see on the reference object, but also the kind of customisation options an end-user might want on the material. The Simple Noise node takes a Scale input to control the size of the noise clouds, so that’s a great place to start. I’ll create a Noise Scale property of type Float to control the granularity of noise around the edges. I also want the user to be able to control how far the noise extends past the cutoff height, so I’ll add a second Float property called Noise Strength.
A lot of the shader design process revolves around what a user might want - which options and features would make this shader more useful in a general situation? Abstracting the scale and strength of the noise into these variables makes the shader far more customisable than it might otherwise be!

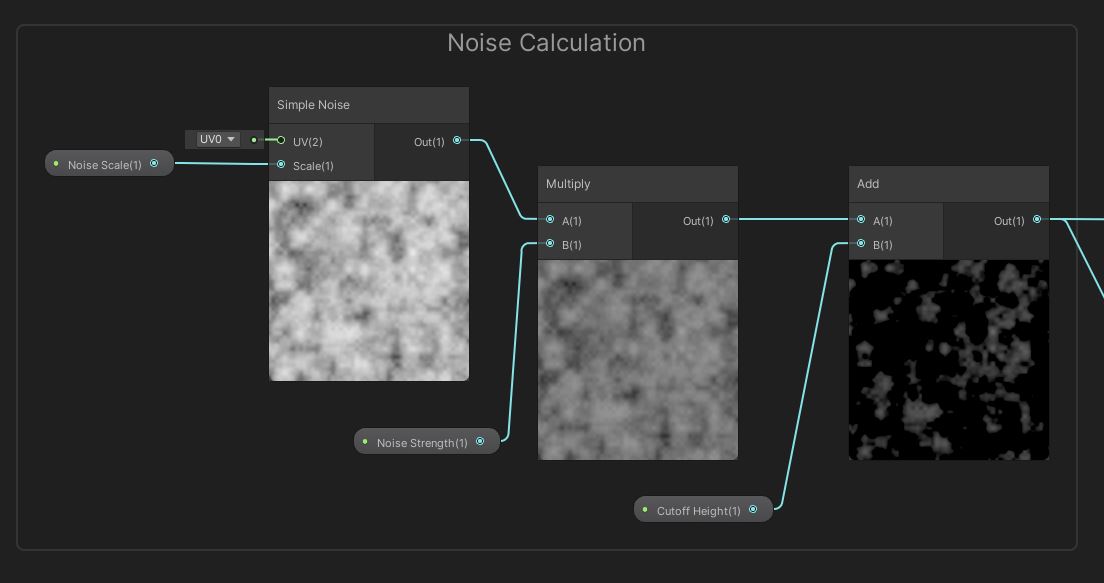

We’ve established that we need to set a height value for the cutoff, but we haven’t discussed how we might add that yet. Let’s add a property called Cutoff Height, of type Float. We can Multiply the output from our Simple Noise node (with Noise Scale in its Scale input) by Noise Strength, Add that to the Cutoff Height property, and that should give us a cutoff threshold value.
I can’t hear you over the noise.

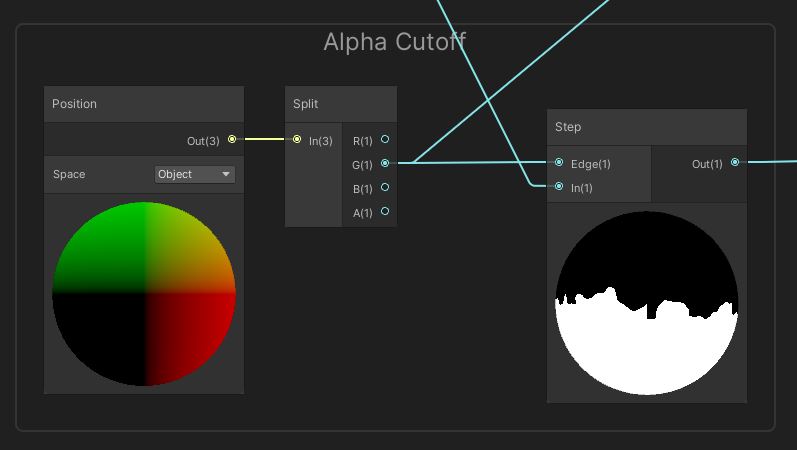

We need to compare that somehow to the height of the pixel being rendered. We’re going to use Object Space, where every position on the mesh is defined relative to the centre point of the mesh itself. That means we’ll be able to specify a cutoff height which will move with the object, although you may prefer using world space, where the cutoff height remains fixed if the object moves. We can use the Position node to get the currently-rendered pixel’s position - make sure you set its Space to Object. We’re going to set the output Alpha of the shader to 0 if this height is above the cutoff threshold we calculated previously, and 1 if it is above, so use a Split node on the Position output to separate the components of the vector, then drag the G component - because RGBA corresponds to XYZW and we want the height, Y - into a Step node’s Edge input. Then, pass the cutoff from before into the In input. On the preview, you should see a noisy cutoff pattern - we can output these values directly to the Alpha output and set Alpha Clip Threshold to 0.5.
Step right up for a good ol’ alpha cutoff!
Glowing Edges

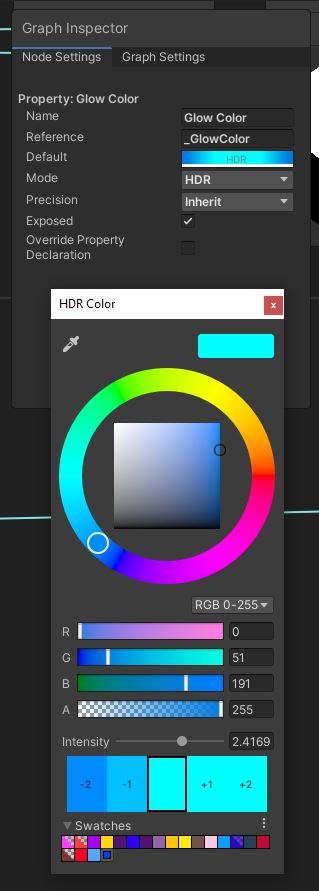

Now we come to the glowing edges around the lip of the effect. For glowing materials like this, we can use the Emission output - that’s one of the main reasons we chose a Lit Shader Graph as out basis for the effect. The usual approach is to connect an HDR colour to the Emission. HDR stands for High Dynamic Range, and it allows us to give colours an additional intensity value - the higher the value, the more brightly the object glows. We can actually use the same cutoff threshold approach we used previously to define the region which should glow. We will need an additional property called Glow Width, of type Float, and another called Glow Color. That second one should be a Color, set to use HDR mode rather than Default - this enables the intensity options I mentioned. By setting an intensity above 0, we’ll start to see glowing.
HDR colours are having the glow-up of the year.
We can take the threshold value from before and Subtract Glow Width to act as the second threshold. We will pass this into a second Step node in its In pin and pass the y-position from before into the Edge pin, which gives us the shape we want, but the wrong colours. Pass the output into a One Minus node to flip white to black and black to white - now we have the shape we need. Multiply by Glow Color, plug the result into the Emission output, and we’ve got a glow much like the reference material. We’ve managed to recreate this shader only by looking at the reference material and not looking at the original graph the material was made with!

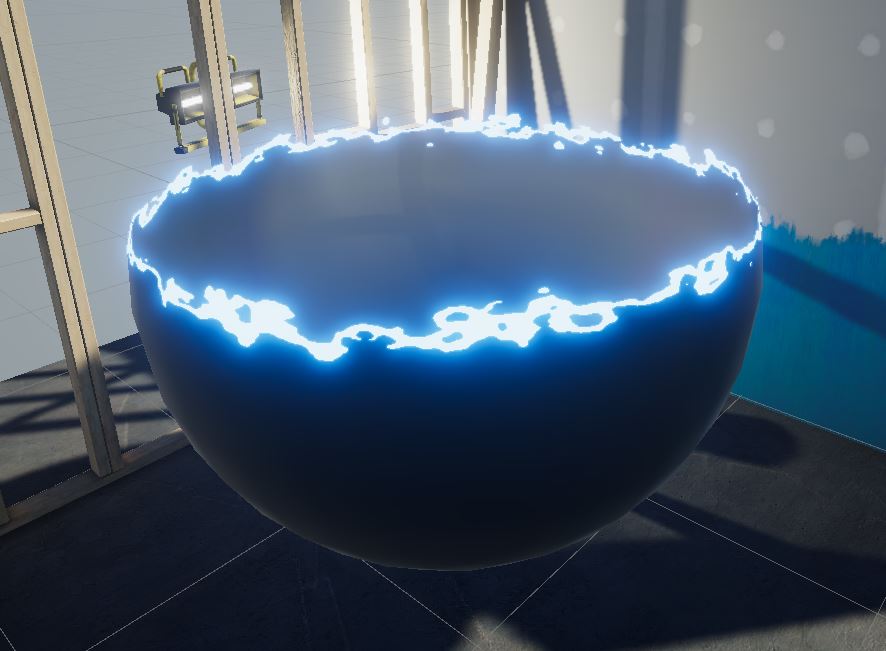

I think it looks better than the original!
Conclusion
We’ve recreated an effect using just the visual elements on the effect itself and a bit of Shader Graph know-how. When it comes to other effects, you’ll need to think about other properties of the effect - my Wind Waker water effect, for instance, manipulates the position of the vertices to simulate waves, and other materials such as the ice refraction effect uses textures to drive parts of the refractions. Knowing what Shader Graph provides and what you’ll need to create yourself is also important, but I wanted this tutorial to give you a starting point for the sorts of questions you’ll need to ask when analysing others’ effects.
